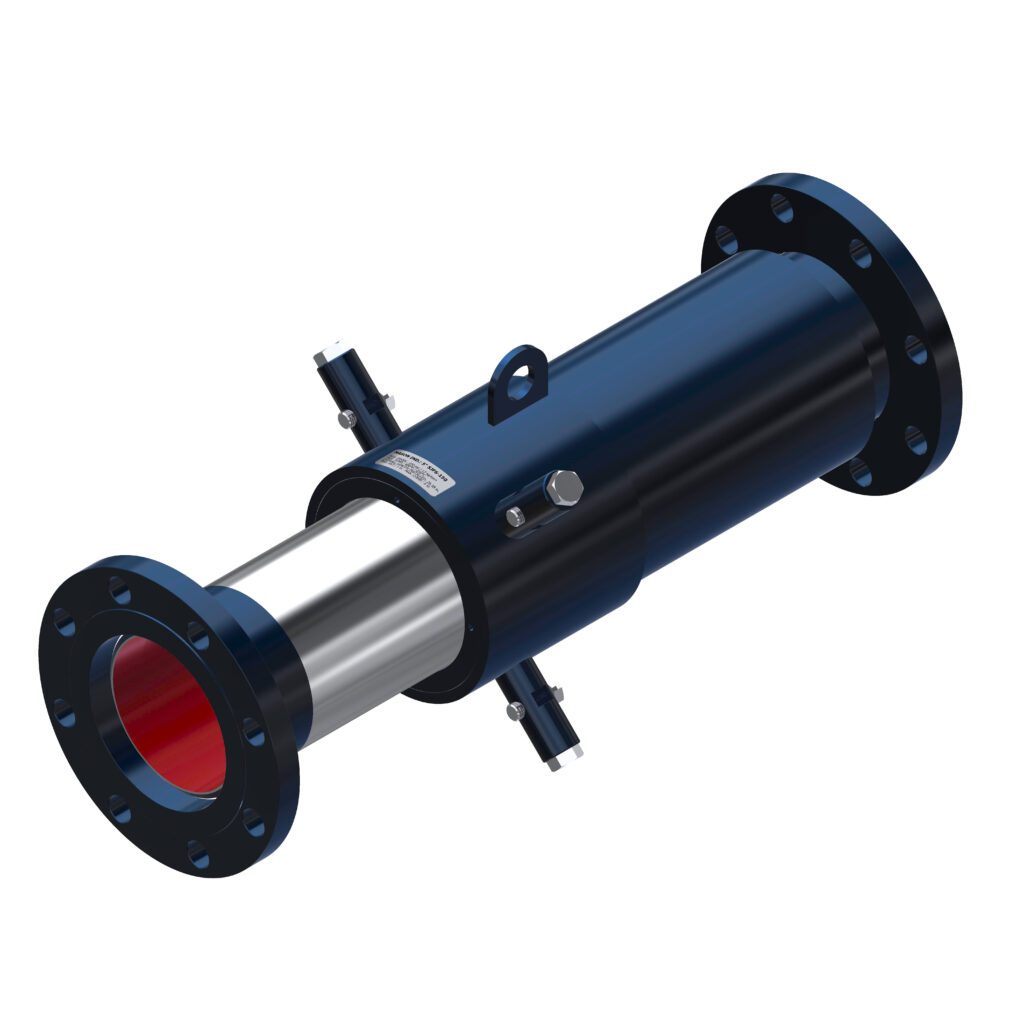

Our latest design rounds out our group of “no major failure” products. Slip joints incorporate many of the design features of ball joints.
Seals are made using high pressure, graphite enriched packing that is easily pressurized or replaced. Rather than 4″ (102mm) and 8″ (203mm) movement, we stock 6″ (152mm) exclusively. This meets the frequent demands for movements up to 2″ (51mm) more than 4″ (102mm). Movements larger than 6″ (152mm) are rarely required.
Style SJF
Dimensions & Pressure Ratings
| Type & Size | Pipe Size | Overall Length | Friction Force | Rated Pressure 480°F - 250° C | Number of Ports |
|---|---|---|---|---|---|
| in - mm | in - mm | lbs - kgs | psi - kg/cm2 | ||
| SJW6-2 | 2 - 50 | 25-3/8 - 645 | 1102 - 500 | 725 - 329 | 2 |
| SJW6-2-1/2 | 2-1/2 - 65 | 25-3/4 - 655 | 1281 - 581 | 1220 - 553 | 2 |
| SJW6-3 | 3 - 80 | 26-1/4 - 667 | 1596 - 724 | 1970 - 893 | 2 |
| SJW6-4 | 4 - 100 | 26-1/2 - 673 | 1956 - 887 | 2910 - 1320 | 4 |
| SJW6-5 | 5 - 125 | 27-3/4 - 706 | 2743 - 1244 | 4750 - 2155 | 4 |
| SJW6-6 | 6 - 150 | 28-3/8 - 722 | 3754 - 1703 | 6850 - 3107 | 6 |
| SJW6-8 | 8 - 200 | 28-5/8 - 728 | 4811 - 2182 | 12160 - 5156 | 6 |
| SJW6-10 | 10 - 250 | 29-3/8 - 745 | 6879 - 3120 | 19780 - 8972 | 8 |
| SJW6-12 | 12 - 300 | 30-5/8 - 778 | 8,093 - 3,671 | 28,720 - 13,027 | 8 |
| SJW6-14 | 14 - 350 | 32 - 813 | 9,015 - 4,089 | 34,350 - 15,581 | 10 |
